Western Sydney Airport noise abatement

Noise Abatement Procedures

Every major airport has Noise Abatement Procedures (NAPs), which are procedures designed to reduce the impact of aircraft noise on the community. There are some limitations to the use of NAPs and they may not be used if they generate delay and congestion, as this can cause noise and emission impacts. Air traffic control or pilots may not be able to use them in certain situations, for example weather conditions or operational requirements.

The main Noise Abatement Procedures currently in use at Western Sydney Airport are:

Preferred runways

Air traffic control nominates the runway for use to ensure safety and operational requirements are met, depending on the weather conditions. If weather conditions do not favour a specific runway, the ‘preferred’ runway is used, the preferred runways for the day time and overnight period, are outlined below

  • During the day period (5:30am to 11pm), providing wind and traffic management safety requirements permit, Runway 23 is the preferred runway
  • During the overnight period (11pm to 5:30am), providing wind and traffic management safety requirements permit, Reciprocal Runway Operations (RRO) is the preferred runway. RRO is only available overnight and can only be used when very specific weather and traffic conditions are met. More information about RRO can be found in the factsheet here. If RRO cannot be used, Runway 23 is the next preferred runway.

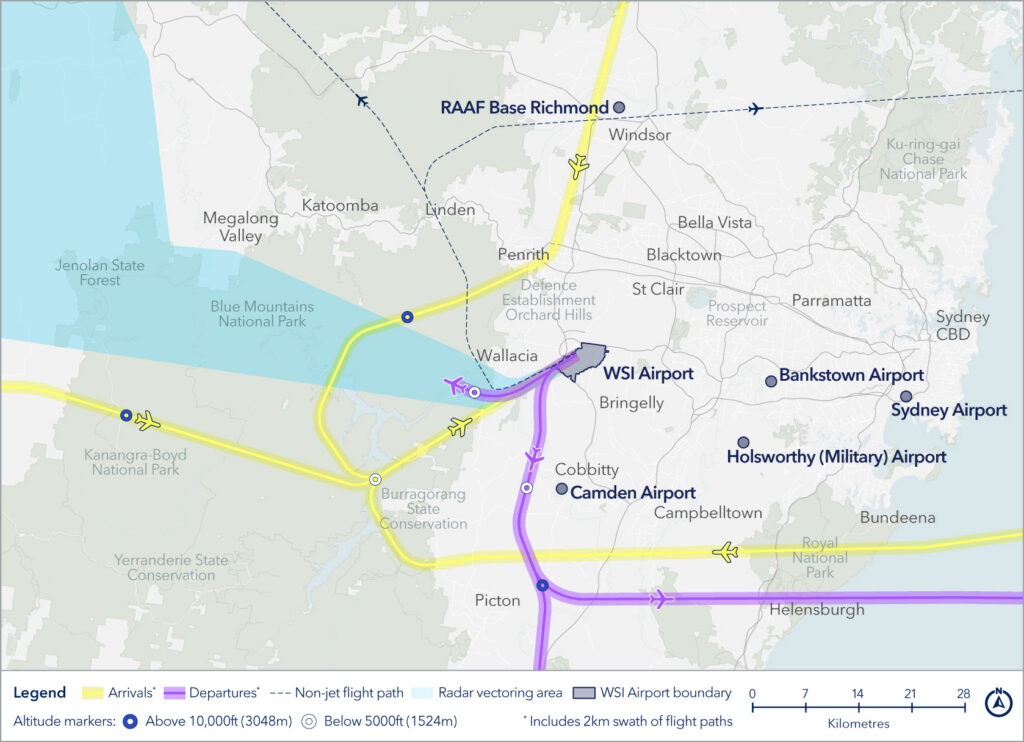

Noise Abatement Procedure (NAP) for Reciprocal Runway Operations (RRO)

RRO is the preferred runway mode between 11pm and 5.30am with an aim to provide the best noise minimisation outcomes for the surrounding communities.

A NAP for RRO has been developed to further minimise these impacts by tactically directing aircraft off the designated flight paths and around communities when lower traffic volumes allow. Aircraft departing to the north or west will continue straight for approximately 5 nautical miles (9.3km) rather than immediately turning. From this point, ATC will tactically direct aircraft to remain south of the Great Western Highway avoiding communities until they join the published flight path over the National Park west of Katoomba (see image below).

The availability of RRO is dependent on suitable weather conditions, the location of arriving traffic to enable clear airspace and when air traffic volumes are low enough to permit safe operations. The number of movements per hour under RRO will decrease over time as the airport’s traffic volume grows.

Noise Abatement Departure Procedures (NADPs)

When applied by pilots NADPs can reduce the noise impact during departure. The noise reduction outcome depends on the type of aircraft, engine type, thrust required, and the height at which thrust is reduced.

At Australia’s major airports, NADPs are generally required over residential areas to reduce aircraft overflight noise in the first 20km of flight. More information about NADPs at WSI can be found in the Noise Abatement Procedures factsheet.

Community feedback identified a preference for NADP2, which reduces noise over areas more distant from the runway end by prioritising increasing forward speed after take-off. Thrust is reduced at 800ft, and flaps are retracted between 800ft and 3000ft to slow down the climb, keeping aircraft lower closer to the airport. At 3000ft the aircraft will accelerate and increase its angle to gain height, so they can rapidly gain altitude to be higher over communities further from the airport. As a result, pilots will be asked to prioritise NADP2 where possible.

Noise preferential flight paths (daytime vs. overnight)

Noise preferential flight paths are used to direct aircraft away from residential areas, where possible. This includes the use of different flight paths between 11pm and 5.30am, when additional airspace flexibility is available because of the curfew at Sydney Kingsford Smith Airport.

How much noise are aircraft allowed to make?

In Australia, aircraft noise standards apply before an aircraft is allowed to operate here, rather than in the course of its day-to-day flying activities.

Before an aircraft begins operating in Australia it is required to meet international noise standards that specify the amount of noise that may be emitted by that type or model of aircraft. If an aircraft does not pass the certification process, it may not fly in Australia. However once an aircraft passes this certification process, there is no legislation or regulation that enables any agency, including Airservices, to police its noise levels.

There is no regulated maximum noise level for aircraft flying over residential areas. Without any maximum level set out in legislation or regulation, there is no objective measure to determine whether any aircraft flying in Australia is “too noisy”, or whether the combined load of aircraft experienced by a community is “too much” noise.

More information about Aircraft Noise Regulations is available on the Department of Infrastructure, Transport, Regional Development and Communications, Sports and Arts website.

What are the rules about helicopters?

Helicopter routes

While helicopter routes exist, helicopters are not restricted to these routes. Inside controlled airspace helicopters must comply with directions from air traffic control whether flying on or off established routes. Outside controlled airspace aircraft, including helicopters, are not under the direction of air traffic control but they must comply with aviation regulations set down by the Civil Aviation Safety Authority.

Altitudes

The Civil Aviation Safety Authority have regulations for how low aircraft, including helicopters, can fly. These regulations require helicopter pilots fly no lower than 1,000 feet (ft) over built-up areas, or 500 ft over any other areas, unless they are landing or taking off.

Helicopters can fly below these heights in certain situations – for example, police, rescue, fire fighting and military helicopters may fly at any height required.

More information is available on the CASA website.

Hovering

There are no regulations or legislation that prevent helicopters from hovering over an area. For example, media helicopters are permitted to hover while covering a story or sporting event.

If a helicopter pilot wants to cross a ‘controlled’ zone around an airport, it is sometimes necessary for air traffic control to hold the helicopter in one place until it is safe to cross. This sometimes means helicopters have to hover over built up areas.

Who makes decisions about aviation?

Responsibility for aviation operations is shared between a range of parties including Airservices, other federal government agencies, airlines and operators, pilots, airports and state and local governments.

AIRSERVICES AUSTRALIA (AIRSERVICES)

Airservices is Australia’s civil Air Navigation Service Provider (ANSP) to the aviation industry and provides aviation rescue firefighting services at 27 of Australia’s busiest airports. Airservices is a corporate Commonwealth entity established and governed by the Air Services Act 1995. Airservices publishes aeronautical data, maintains aviation telecommunication infrastructure and radio navigation aids, updates flight procedures and provides a national aircraft Noise Complaints and Information Service (NCIS).

AIRPORT OPERATORS

Airport operators are the decision-makers for all on-airport activities, including developing infrastructure to support aircraft operations, such as new runways, and safeguarding aviation operations. Airport operators may also develop noise management plans, limit aircraft movements, encourage quieter fleets, prepare long-term forecasting of aircraft noise around the airport, such as the Australian Noise Exposure Forecast (ANEF), and manage local community engagement.

AIRCRAFT OPERATORS

Aircraft operators are responsible for what is referred to as “noise at source”. They make decisions about what type of aircraft they operate, what engines they equip aircraft with, and which airports they fly those aircraft to. Aircraft operators can also modify aircraft to reduce noise impacts and invest in newer fleets. All these factors can impact the noise experienced on the ground.

CIVIL AVIATION SAFETY AUTHORITY (CASA)

The Civil Aviation Authority (CASA) is a government body that regulates Australian aviation safety. It sets rules that pilots, aircraft operators, air traffic controllers and airports must comply with. CASA validates the instrument flight procedures Airservices produces and is the ultimate approver of Airspace Change Proposals.

DEPARTMENT OF INFRASTRUCTURE, TRANSPORT, REGIONAL DEVELOPMENT, COMMUNICATIONS AND THE ARTS

The Department of Infrastructure, Transport, Regional Development, Communications, Sport and the Arts is responsible for administering Minister approval of airport infrastructure projects for federally leased airports, generally submitted through a Major Development Plan (MDP) and Environmental Impact Statement (EIS), and for providing policy advice to the Minister on the efficient management of Australian airspace and aircraft noise and emissions. The Department can make recommendations to the Government on regulatory measures to manage aircraft noise. This department is also responsible for setting the requirement for federally leased airports to produce an ANEF.

DEPARTMENT OF CLIMATE CHANGE, ENERGY, THE ENVIRONMENT AND WATER

The Department of Climate Change, Energy, the Environment and Water (DCCEEW) administers the Environment Protection and Biodiversity Conservation Act 1999 (EPBC Act) and is involved in assessing any proposed changes to aircraft operations that trigger “significance” under this Act. The Commonwealth Minister for Environment provides advice on these changes.

DEPARTMENT OF DEFENCE

The Department of Defence is responsible for aircraft operations by military aircraft at military-controlled airports. They provide information, undertake community engagement and are responsible for managing complaints about military aircraft noise.

STATE AND LOCAL GOVERNMENT

State, Territory and Local Governments are responsible for land use planning around airports through zoning, subdivision control, and comprehensive planning actions. Local Governments may also be airport owners.

AIRCRAFT NOISE OMBUDSMAN

The Aircraft Noise Ombudsman conducts independent administrative reviews of Airservices and Department of Defence management of aircraft noise-related activities.

Do planes have to stay on flight paths?

What is a flight path?

The term ‘flight path’ is used to refer to the mapped three-dimensional corridor where aircraft fly most of the time. Flight paths can be a number of kilometres wide, rather than the single lines depicted on flight charts (maps). Aircraft may fly differently within these corridors for a range of reasons, including aircraft performance (including type, speed and weight), and navigation systems.

Aircraft may deviate from flight paths for a range of reasons, including weather and operational requirements. In controlled airspace, this will be at the approval of air traffic control (ATC).

Weather diversions

During periods of bad weather aircraft may need to be diverted off the normal flight paths to avoid storm cells, heavy rain and dangerous cloud formations.  Sometimes this bad weather is not in your local area but it can be detected many nautical miles away by sophisticated weather radar systems that are installed in modern aircraft.  If a pilot requests a diversion to avoid bad weather this will be facilitated by air traffic control. This can result in aircraft flying outside the published flight paths.

Traffic management

Sometimes air traffic controllers need to take aircraft off the published flight path in order to ensure that safe separation is maintained between aircraft.  For example, this might occur when the volume of traffic in the airspace is high, such as during peak periods, or it might occur when a jet is flying behind a slower turbo-prop aircraft.  The slower plane may need to be turned off the flight path so as not to delay the faster jet.  This can result in aircraft flying outside the expected paths.

Missed approaches

A go-around, or missed approach (also sometimes referred to as an aborted landing), is a safe and well-practiced manoeuvre that sees an aircraft discontinue its approach to the runway when landing. This standard manoeuvre does not constitute any sort of emergency or threat to safety. It will however result in the aircraft flying an unusual flight path as it climbs and circles around for another approach.

The most common cause of go-arounds is adverse weather conditions, including strong winds, experienced by the aircraft on final approach. Debris on the runway, an aircraft (or vehicle) that has not yet cleared the runway or an aircraft that has been slow to take-off may also prompt go-arounds.

Emergency services operations

The published flight paths may be varied to avoid disruption to high priority emergency aircraft including aircraft involved in fighting bush fires, search and rescue, medical or police operations.

Light aircraft and helicopters

Generally, published flight paths are for aircraft flying according to Instrument Flight Rules (IFR), which is where the pilot uses instruments to fly.

Helicopters and light aircraft often fly Visual Flight Rules (VFR) where the pilot uses visual references to the ground or water and does not fly on a set flight path.

What are the rules about altitudes?

The altitudes of aircraft over your area can vary according to:

  • the airport the flight is coming from or going to
  • whether the aircraft is coming in to land, taking off or in level flight
  • the specific requirements of the flight path
  • the need for air traffic control to maintain vertical separation between aircraft.

There are no regulations setting out minimum altitudes for aircraft in the course of taking off or landing at an airport.

Variation in departure altitudes

You may observe differences in the altitudes of departing aircraft. Aircraft have different climbing abilities depending on factors such as the type of aircraft and its weight, how heavily laden it is, and even the meteorological conditions at the time.

Large jets such as Airbus A380s will climb more slowly than smaller, lighter aircraft because they are so much heavier. A380s are frequently used for long-haul non-stop flights and in these circumstances will be fully laden with fuel. This adds to the weight and further compromises climb performance. When two aircraft of the same type are observed to have different climb rates this is usually because one is heading for a closer destination than the other, and is therefore carrying less fuel weight.

Atmospheric conditions can affect climb rates. For example, when it is hot and humid the air is less dense. This affects the “lift” of an aircraft and it will take longer to climb in these conditions.

Minimum altitude for level flight

The Civil Aviation Safety Authority have regulations for how low aircraft can fly. These regulations require pilots fly no lower than 1,000 feet (ft) over built-up areas, or 500 feet over any other areas, unless they are landing or taking off.

Aircraft may be able to fly below these heights in certain situations. More information is available on the CASA website.
